Y26 hand-held rock drill has the advantages of small size, light weight, low gas consumption and so on dry rock drilling, suitable for small mines, quarries, mountain roads, water conservancy construction and other projects a vertical downward or sloping blasting hole or secondary blasting hole is drilled in the surface layer. Y26 rock drill with independent strong air blowing system is suitable for drilling vertical downward blasting holes
Application areas:
It is mainly used for drilling shell holes and secondary blasting operations in mines, railroads, water conservancy, and stone works.
Product features:
The operator bears less vibration force of the machine, stronger ballast force, and strong and durable parts. Especially suitable for drilling vertical downward blasting holes.
Technical parameters:
|
Product Model Y26
|
Y26
|
|
Weight
|
26kg
|
|
Length
|
650mm
|
|
Brazing tail specification
|
H22×108/H25×108mm
|
|
Drill hole diameter
|
r 34-42mm
|
|
Piston diameter
|
65mm
|
|
Piston stroke
|
70mm
|
|
Air consumption
|
≤50L/s under the condition of 5kg/cm2 air pressure
|
|
Impact frequency
|
≥27Hz
|
|
Rotation
|
280r/min
|
|
Inner diameter of air pipe
|
19mm
|
| Y26 Jackhammer spare parts list |
| 序号NO |
型 号 PAPTNO |
Name |
名称PAPTNAME |
|
序号NO |
型 号 PAPTNO |
Name |
名称PAPTNAME |
| 1 |
Y26-303 |
Water connection tube |
进水弯管 |
29 |
YT25-1.14 |
Ratchet pawl |
棘轮爪 |
| 2 |
Y26-302a |
Water pipe nut |
水管螺母 |
30 |
YT25-1.15 |
Crowned spring |
塔形弹簧 |
| 3 |
24×2.4GB1235-79 |
O-ring |
O型密封圈 |
31 |
7655-203 |
Yoke bolt |
钎卡螺栓 |
| 4 |
26-301 |
Back head |
柄体 |
32 |
Y26-204 |
Yoke |
钎卡 |
| 5 |
7655-304 |
Water tube sleeve |
水针套 |
33 |
7655-205 |
Yoke spring |
钎卡弹簧 |
| 6 |
26-304 |
Water & air tube |
风水针 |
34 |
GB889 M16 |
nylon lock nut |
尼龙锁紧螺母 |
| 7 |
7655-101 |
Ratchet |
棘轮 |
35 |
7655-204 |
bulging nut |
凸型螺母 |
| 8 |
83-23 |
tamping |
填塞 |
36 |
GB56 M16 |
thick nut |
六角厚螺母 |
| 9 |
26-101 |
Valve cover |
阀盖 |
37 |
YGP28-304 |
long bolt |
长螺栓 |
| 10 |
26-102 |
Valve chest |
伐 |
38 |
Y26-112 |
oil plug |
油堵 |
| 11 |
26-103 |
Valve |
伐柜 |
39 |
Y26-112 |
hoop |
喉箍 |
| 12 |
26-104 |
Valve sleeve |
阀套 |
40 |
.25-04 |
Conical pipe connector |
锥形胶管接头 |
| 13 |
26-105 |
Rifle bar |
螺旋棒 |
41 |
.25-01 |
butterfly nut |
蝶形螺母 |
| 14 |
26-107 |
Open and close valve |
开闭阀 |
42 |
.25-16 |
pipe connector |
管接套 |
| 15 |
26-108 |
Rifle nut |
螺旋母 |
43 |
Y26-1.06 |
spring |
弹簧 |
| 16 |
26-109 |
Piston |
活塞 |
44 |
Y26-308 |
operating valve |
操纵伐 |
| 17 |
26-110 |
Cylinder |
缸体 |
45 |
YT25-3.33 |
air elbow pipe snap ring |
气弯管卡环 |
| 18 |
26-111 |
Guide sleeve |
导向套 |
46 |
7655-307 |
air pipe nut |
气管螺母 |
| 19 |
26-201 |
Front head |
机头 |
47 |
YT25-3.12 |
copper pad |
铜垫 |
| 20 |
26-202 |
Rotational sleeve |
转动套 |
48 |
303-256 |
O-seal ring |
环形密封圈 |
| 21 |
26-203 |
Shank sleeve |
钎尾套 |
49 |
Y26-307 |
inlet elbow pipe |
进气弯管 |
| 22 |
YT25-3.17A |
Fastening pin |
紧固肖 |
50 |
YT27-105 |
fixing pin |
定位肖 |
| 23 |
GB9310 |
Spring pad |
弹簧垫圈 |
51 |
Y26-305A |
rubber handle |
橡胶手把 |
| 24 |
GB6172-M10 |
Hex.thin.nut |
六角薄螺母 |
52 |
Y26-306A |
handle bolt |
把手螺杆 |
| 25 |
YT25-3.20 |
Spring |
固定肖弹簧 |
53 |
GB889 M20 |
nylon lock nut |
尼龙锁紧螺母 |
| 26 |
YT25-3.21 |
Setting pin |
定位肖 |
54 |
YSP45-315 |
operating handle |
操纵手把 |
| 27 |
123-23 |
tamping |
填塞 |
55 |
Y26-11 |
open and close handle |
开闭手把 |
| 28 |
GB84820 |
flat pad |
平垫 |
|
|
|
|

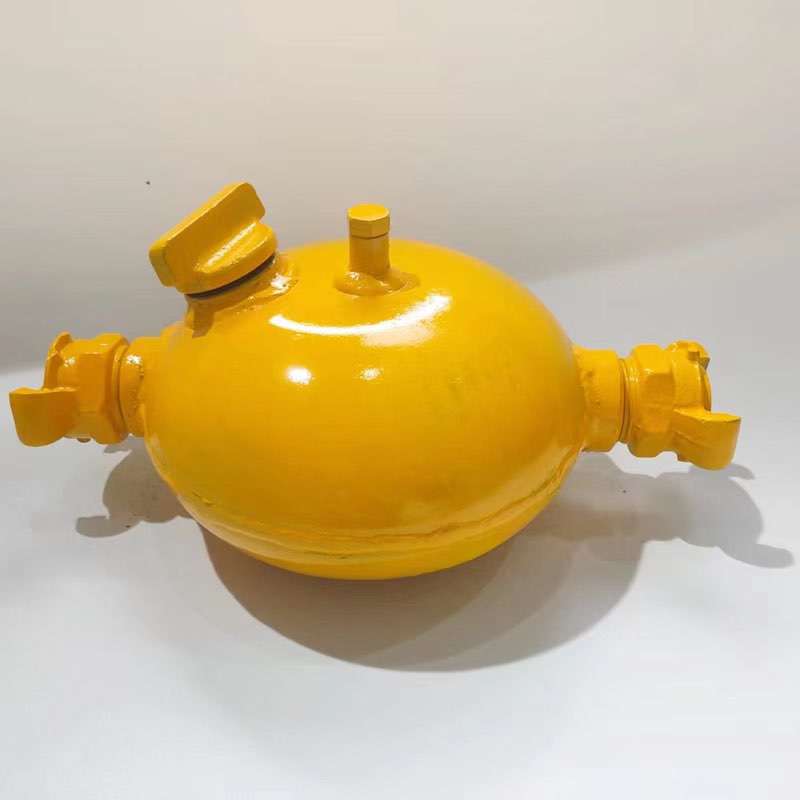

Oil feeder:
