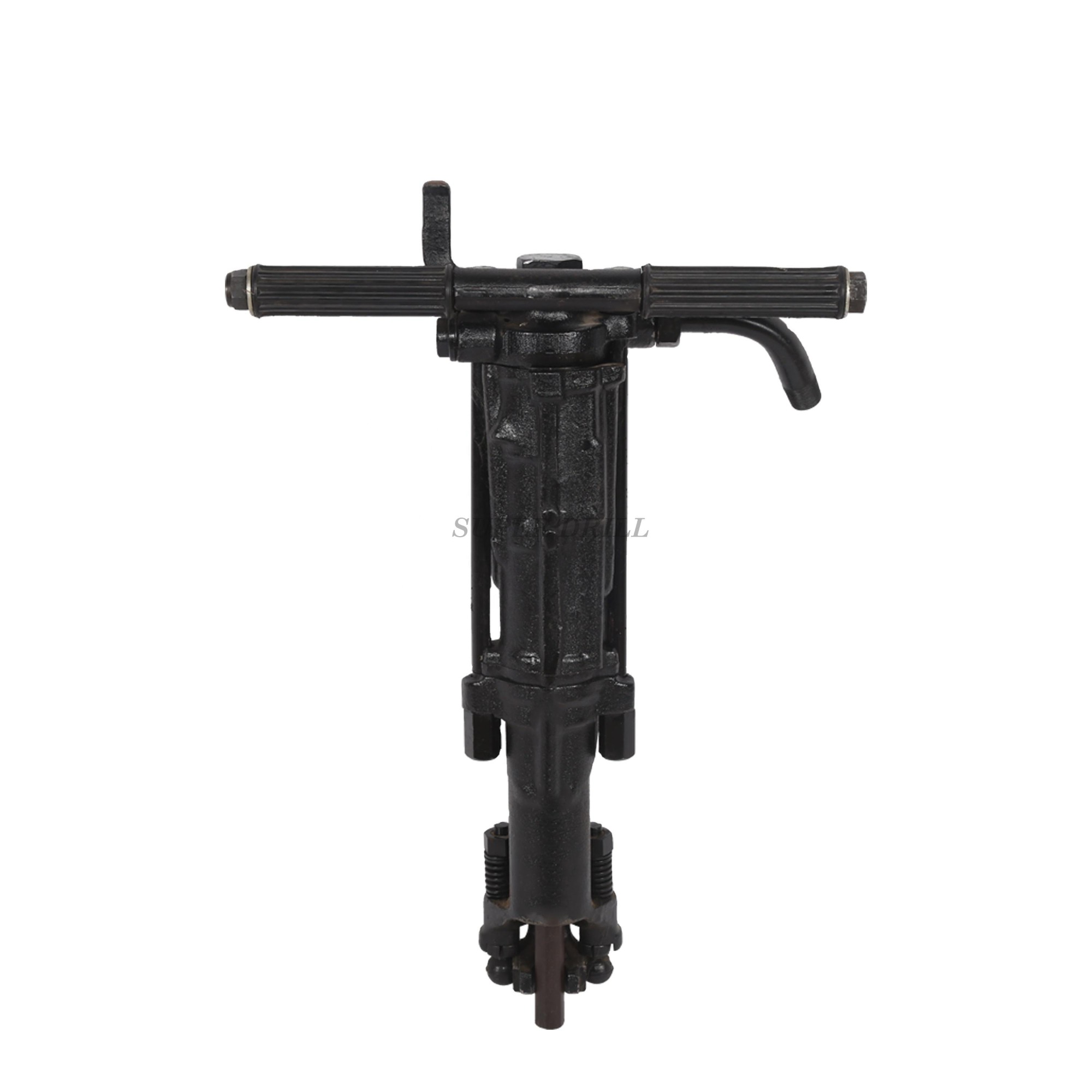

The TY24C portable small pneumatic hand-held rock drill is an efficient solution for drilling in mining, construction, and other applications. They are suitable to the secondary rock breaking, and bedrock drilling blast hole for demolition rock and dimension stone quarrying. Its design and construction are based on safe and fuel-saving technology.
Product features:
The operator is subjected to less machine vibration force, more powerful ballast force, and strong and durable parts. Especially suitable for drilling vertical downward blast holes.
Technical parameters:
|
Weight (KG）
|
27
|
|
Length（MM）
|
610
|
|
Cylinder diameter（MM）
|
66.7
|
|
Piston stroke（MM）
|
68
|
|
Air consumption（m³/min）
|
2.7
|
|
Diameter of brazing tail（MM）
|
22*108
|
|
Working pressure（Mpa）
|
0.5-0.63
|
|
Suitable drilling diameter（MM）
|
32-46
|
|
Suitable drilling depth（M）
|
5
|
|
Inner diameter of gas pipe（MM）
|
19
|
