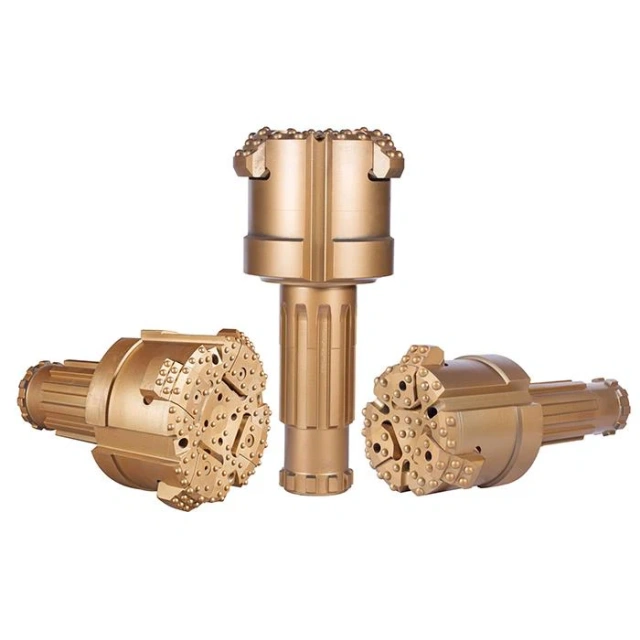

Slide block casing system

Item No.: 005
Slide block casing system Features Hardening treatment of the part’s surface: with longer operating life and excellent anti-wear properties. Simple Structure: greatly minimize the chances of structural failure, convenient operation.
Sale: 0
Description Review
Description
Slide block casing system
Slide block casing system Features Hardening treatment of the part’s surface: with longer operating life and excellent anti-wear properties. Simple Structure: greatly minimize the chances of structural failure, convenient operation.

Features:

1.Hardening treatment of the part's surface, with longer operating life and excellent anti-wear properties.

2.Simple structure, greatly minimize the chances of structural failure, convenient operation.

3.Superior performance, take care of both the drilling wear life and drilling efficiency.
Slide block casing system

Application Range

It is suitable for drilling water wells, geothermal wells, short micro-piles, medium mini-type grouting hole of building, demand harbor project.

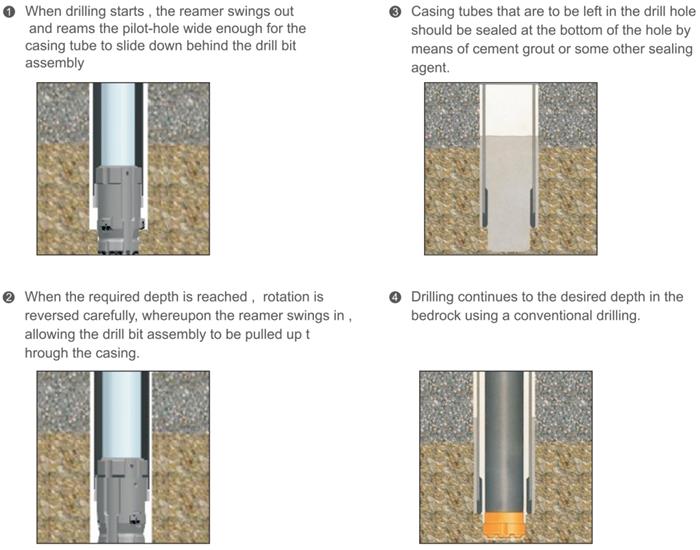

Working principle:

1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.

2. When the required depth is reached, rotation is rever_sed carefully, whereupon the reamer swings in, allowing the drill bit assembly to be pulled up through the casing.

3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hoe by means of cement grout or some other sealing agent.

4. Drilling continues to the desired depth in the bedrock using a conventional drilling tools.
