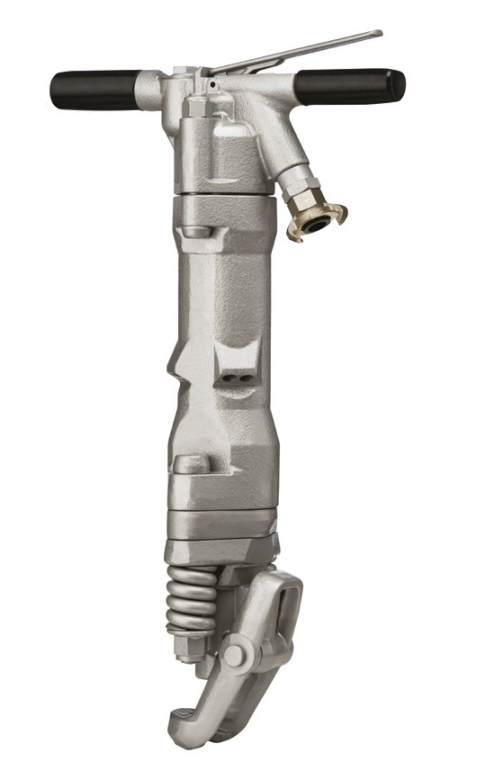

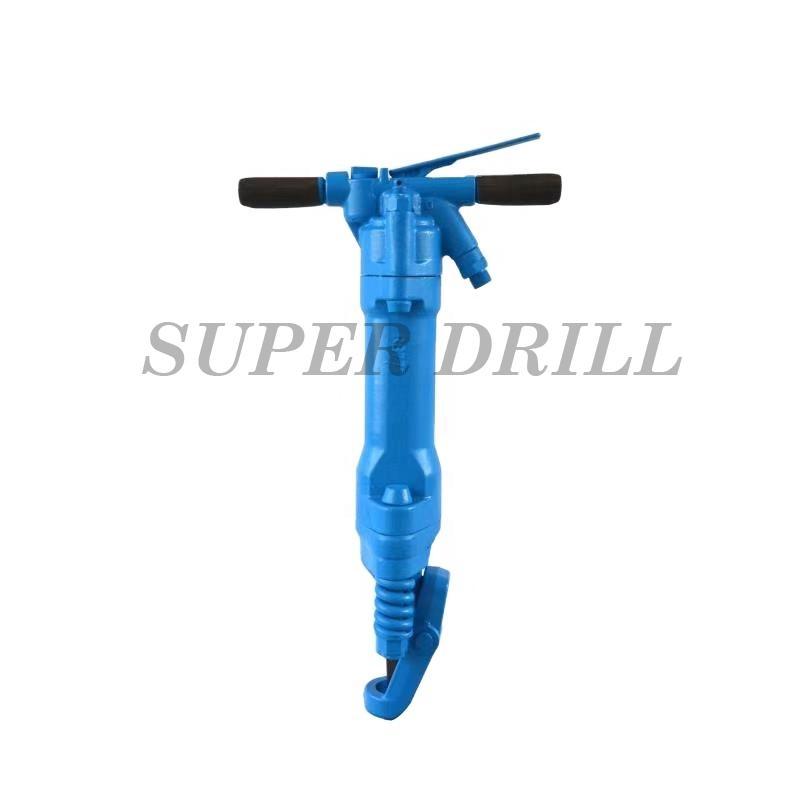

RB777 pneumatic picks
RB777 pneumatic picks are used to build roads, install works of broken concrete and other hardens Hard object tools, the machine structure is simple, high efficiency, easy to operate,As long as the rod installed, connected to the air source, you can work, is broken hard The ideal tool for the body.
RB777 air pick an applicable scope
1、Coal mining in coal mines, planning the foot pit of the column, opening the ditch;
2、Mining soft rock;
3、Breaking concrete, permafrost, and ice in construction and installation projects;
Function:
High Power High Productivity
Long piston stroke provides superior impact energy.
High Durability Easy Maintenance
Reinforced cup retainer for high durability
Replaceable bushing to protect wear of cylinder.
Simple structure for less maintenance
Weight
|
37 kg
|
Length
|
733 mm
|
Piston Diameter
|
57 mm
|
Working Pressure
|
0.63 Mpa
|
Impact Frequency
|
18.3 Hz
|
Air Pipe Inner Diameter
|
19 mm
|
Air Consumption
|
34 L/s
|
Oil Lubricator Capacity
|
30 ml
|
