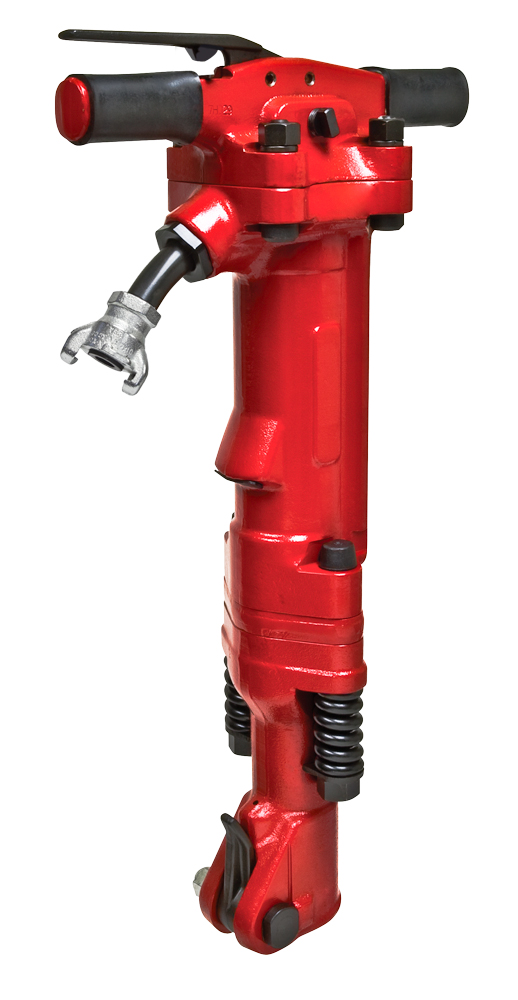

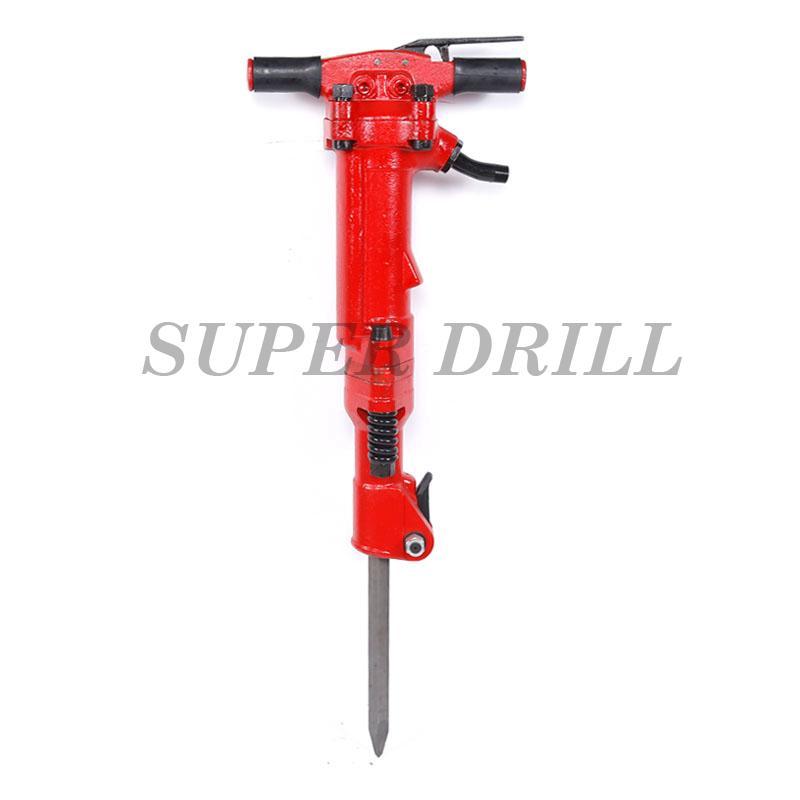

Pneumatic Breaker TPB-90

Item No.: 00163
Model    TPB90
Weight 42 kg 93 lb
Length 725 mm 28.5"
Air consumption 36.8 l/s 78 cfm
Blows per minute 1250
Piston dia 66.6 mm 2.62"
Piston stroke 152 mm 5.9"
Air inlet (NPT) 19 mm 3/4"
Shank size (Standard) 32 x 152 mm 1-1/4" x 6"
Sale: 0
Description Review
Description
The pneumatic breaker TPB-90 is a highly efficient demolition breaker that uses compressed air to break rock, asphalt, reinforced concrete and other materials.
Feature
1. Our T-handle breaker is manufactured from alloy steel to enhance its durability, and its handle is fixed by 4 bolts to withstand extreme working conditions.
2. Thanks to the quick-change clamp, it is very simple to change chisels, while the hexagonal shank makes this pneumatic breaker fit for breaking or digging asphalt road.
Application
Due to its big power, high efficiency and long service life, the pneumatic breaker TPB-90 is ideal for breaking ultra-large, ultra-thick or ultra-hard objects, and it is commonly used in mining and municipal construction projects.

Technical Data of Pneumatic Breaker TPB-90

Technical Data of Pneumatic Breaker
Parameter/name tca-7 tcd-20 rb777 tpb-40 tpb-60 tpb-90
Piston diameter 35mm 42.85 57mm 44mm 57.15mm 66.67mm
Piston stroke 120mm 60mm 189mm 146mm 100mm 152mm
Percussive frequency 1250 B.P.M 2000 B.P.M 18.3 Hz 1050 B.P.M 1400 B.P.M 1400 B.P.M
N.W 7.2kg 10kg 37kg 18kg 30kg 42kg
Length 465MM 520MM 733MM 660MM 645MM 723MM
Air consumption 1.0m³/min 1.1 m³/min 0.63Mpa 1.6 m³/min 2.0 m³/min 2.2 m³/min
Tracheal diameter 19 19 19 19 19 19
bit head size R26*80 R26*80 R32*152 R25*108 R32*152 R32*152
