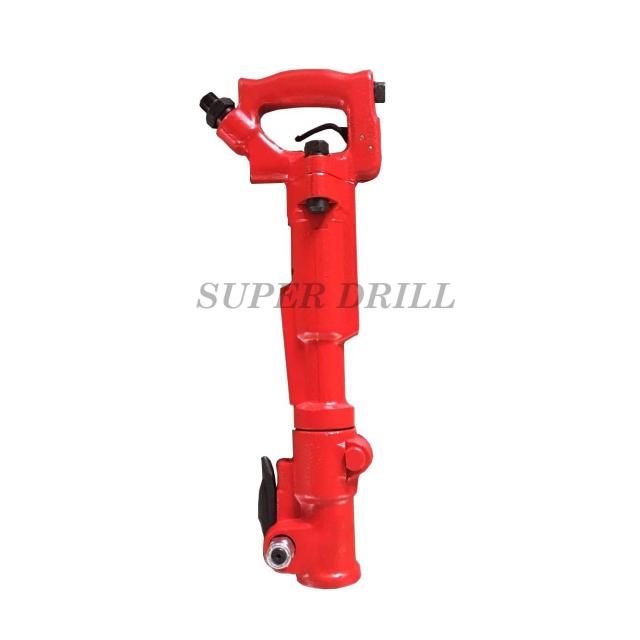

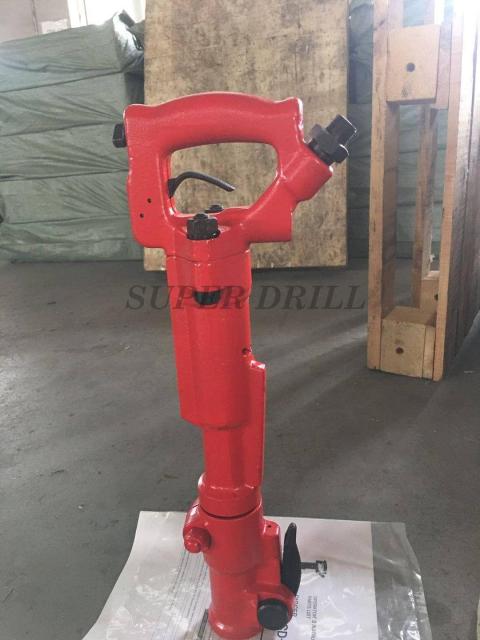

Pneumatic Breaker TCD-20

Item No.: 00160
Model TCD-20
Piston Diameter 42.85 mm
Piston Stroke 60 mm
Blow Per Minutes 2000 bpm
Net Weight 10 kg
Overall Length 520 mm
Avg. Air Consumption 1.10 m3/min (38 cfm)
Air Inlet 1/2″
Hose Size 19 mm
Shank Size 7/8″ x 3-1/4″
Chisel Code 9
Sale: 0
Description Review
Description

Pneumatic Breaker TCD-20
Toku TCD20 (Made in Japan) is an air trencher and clay digger designed for general concrete breaker in construction worksites

  • Features

    • Heat-treated forged body for excellent durability.
    • Noise reduction muffler is optionally available.
    • D-style handle for precise control and safe use.
    • Latch retainer for quick change.

    Specifications

    Model TCD-20
    Piston Diameter 42.85 mm
    Piston Stroke 60 mm
    Blow Per Minutes 2000 bpm
    Net Weight 10 kg
    Overall Length 520 mm
    Avg. Air Consumption 1.10 m3/min (38 cfm)
    Air Inlet 1/2″
    Hose Size 19 mm
    Shank Size 7/8″ x 3-1/4″
    Chisel Code 9
