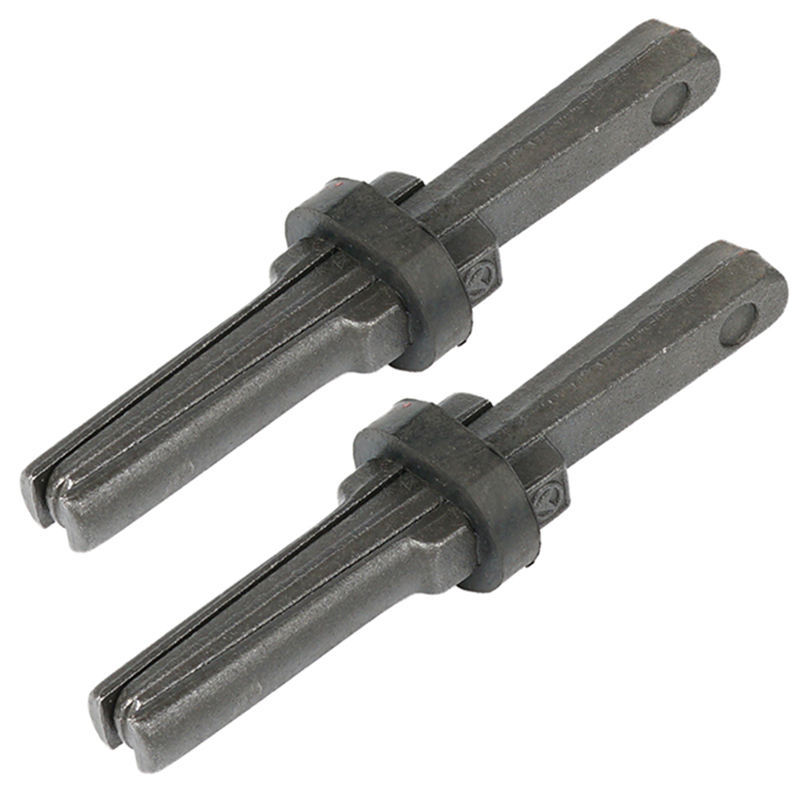

Hand splitter

Item No.: 00112
Shims and wedges are Used in conjunction with hammer, (compressor) drilling machine bits for stone blocks billet were split.
Sale: 0
Description Review
Description

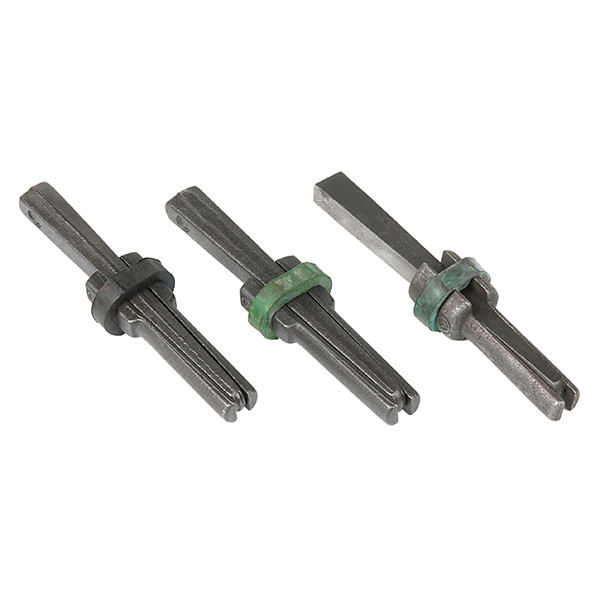

Shims and wedges are Used in conjunction with hammer, (compressor) drilling machine bits for stone blocks billet were split..Used to split the hard stone, rock, granite, marble, concrete.

Instruction for use:

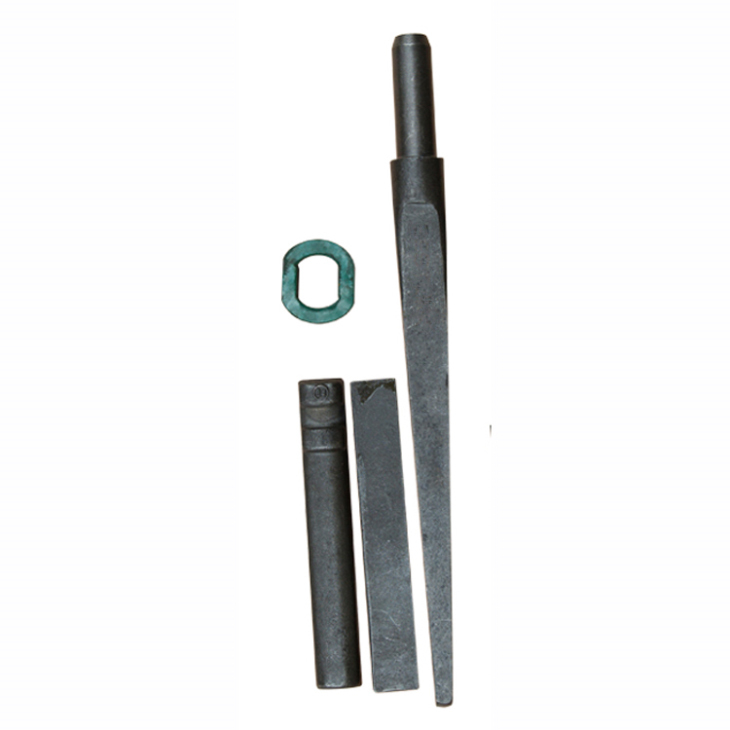

Consists of a Central wedge and 2 wedges, first with quarrying dedicated drill holes in the hole to clear the residual powder, the two big wedge head-down, plane put in the hole, then placed upside the small wedge in the middle of the wedge. Finally, beat with a hammer.

A hole is placed a pair of wedge quarrying, the actual number use according to the workload of the decision. Usually the distance between the two holes about 10cm, depending on the actual use depending on the workload, it can be reused many times.

Specification:

Hand Held:
TYPE DIA(MM) LENGTH(MM)
14-125 14 125
16-125 16 125
24-190 24 190
32-270 32 270
38-325 38 325
38-600 38 600

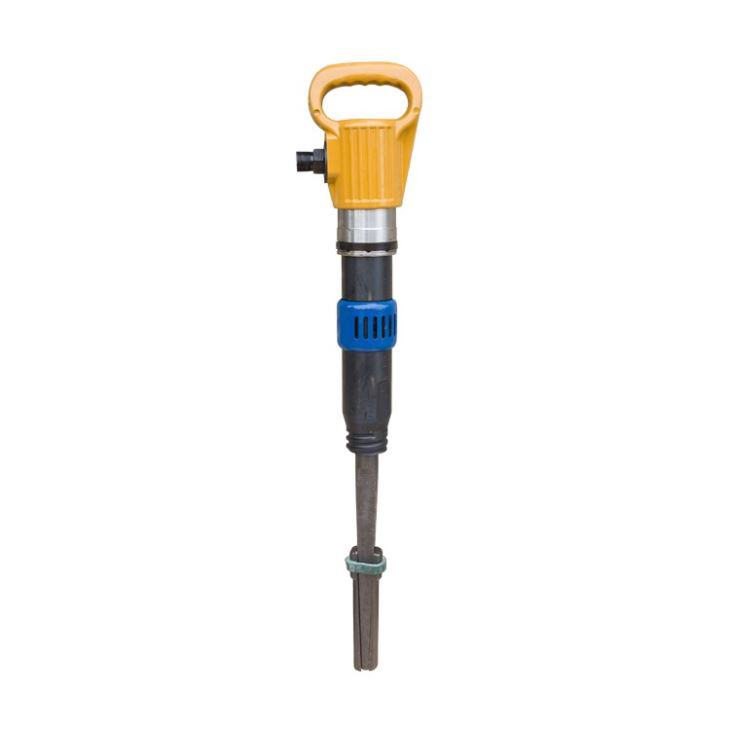

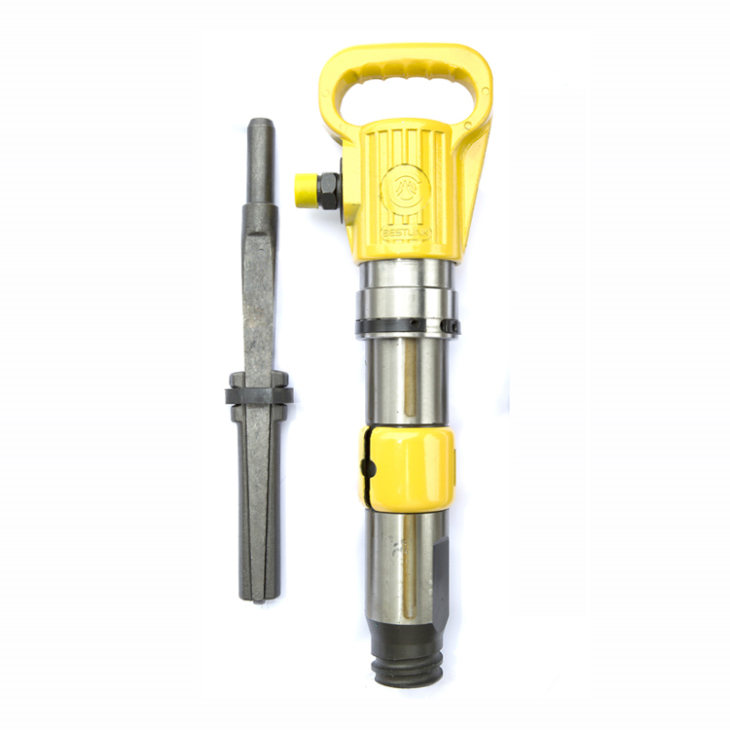

For Air Pick:
TYPE DIA(MM) LENGTH(MM)
20-270 20 270
30-365 30 365
32-365 32 365
32-395 32 395
34-365 34 395
34-395 34 395
36-365 36 365
36-395 36 395
38-365 38 365
38-395 38 395
