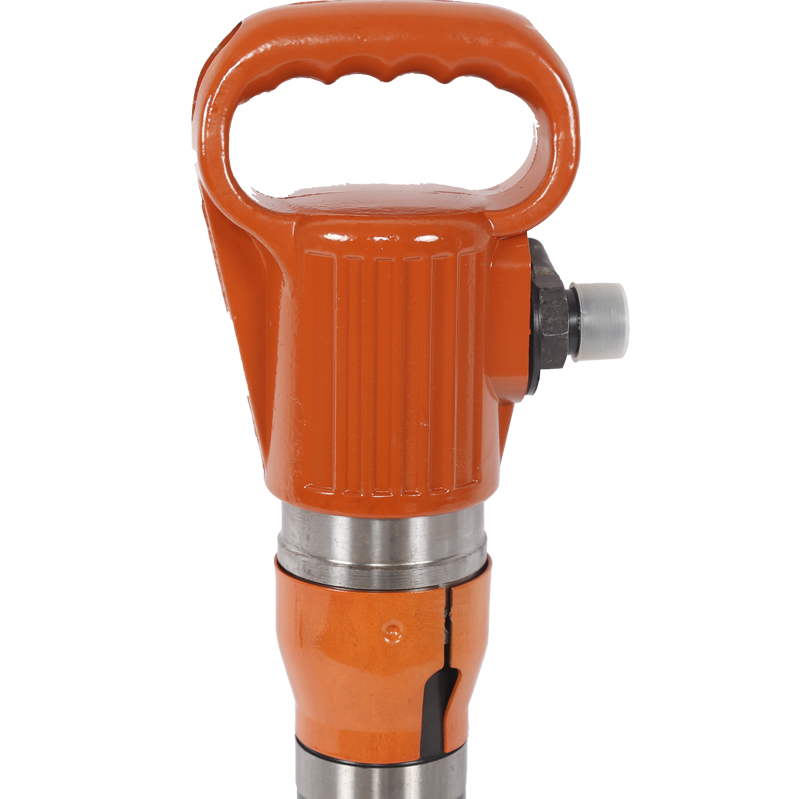

G10 small pneumatic pick
The pneumatic breaker G10 is a D-handle breaker designed for breaking up ice, coal bed, soft rock, frozen soil, damaged road, concrete foundation and other hard objects. It is commonly used in municipal construction, under_ground construction, road maintenance as well as industrial and mining enterprises. In addition, this air tool is also applicable for conditions where impact force is required, such as mounting or dismounting track pins of a tractor or a tank.
Working Principle
Our pneumatic breaker takes compressed air as its working power, and it uses a tubular diverter valve to distribute air to either side of the cylinder in an alternative manner, thus making the piston reciprocate continuously to drive the chisel into rocks or other objects.
|
G7
|
G10
|
G11
|
G20
|
|
Weight
|
7.2 kg
|
10 kg
|
11 kg
|
20 kg
|
|
Length
|
456 mm
|
570 mm
|
520 mm
|
572 mm
|
|
Cylinder Diameter
|
35 mm
|
38 mm
|
35 mm
|
40 mm
|
|
Stroke
|
120 mm
|
155 mm
|
155 mm
|
165 mm
|
|
Working Pressure
|
0.4~0.5 MPa
|
0.5~0.63 MPa
|
0.5~0.63 MPa
|
0.63 MPa
|
|
Impact Energy
|
30 J
|
43 J
|
43 J
|
60 J
|
|
Impact Frequency
|
21.6 HZ
|
16 HZ
|
18 HZ
|
16 HZ
|
|
Air Consumption
|
1 m3/min
|
26 L/s
|
20 L/s
|
23 L/s
|
|
Air Pipe Diameter
|
19 mm
|
16 mm
|
16 mm
|
16 mm
|
