Manual:

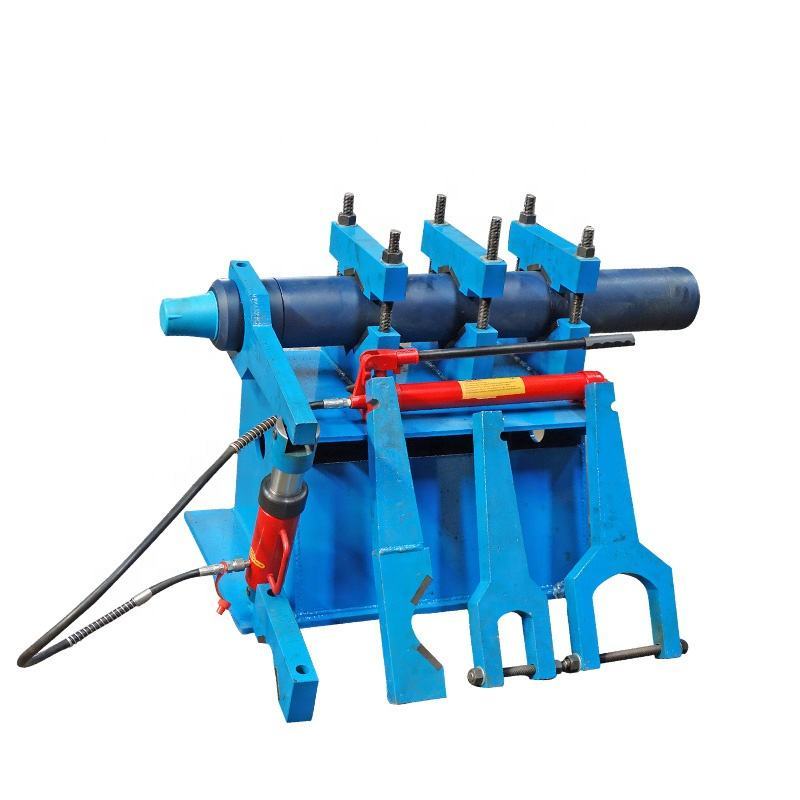

The operation method as below:
1). Put hammer on the bench.
2). Adjust the position of the hammer and wren_ch; use wren_ch to block the top sub side of hammer; let wren_ch and jack in the same face.
3). Fix K-shaped base with nut.
4). Fix wren_ch with nuts.
5). Shake handle of jack slowly till top sub away from hammer.
6). After top sub dismantled, grease the jack, release nuts, discharge the K-shaped base and turn around the hammer.
7). Adjust the position of hammer and wren_ch; use wren_ch to block the drive chuck of hammer; let wren_ch and jack in the same face.
8). Fix hammer
9). Fix K-shaped base and the wren_ch with nut.
10). Shake handle of jack slowly till drive chuck away from hammer.

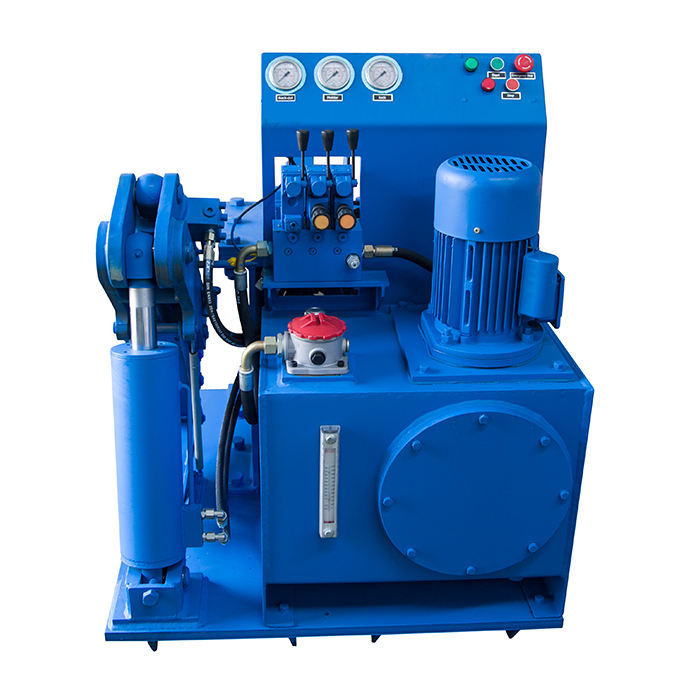

Electric
The standard motor request power source with 3phase, 380V,50Hz. we can adjust the motor as customers request.
Main Technical Data
| Operating principie |
by hydraulic jack(manual) |
by electric motor |
| Model |
CX-5 |
CX-8 |
ECX3.5-10 |
| Operate hammers |
3-5" |
6-8" |
3.5-10" |
| Length |
920mm |
1100mm |
1060mm |
| Width |
510mm |
620mm |
930mm |
| Height |
875mm |
875mm |
1050mm |
| Weight |
350kg |
350kg |
800kg |
