Product Description

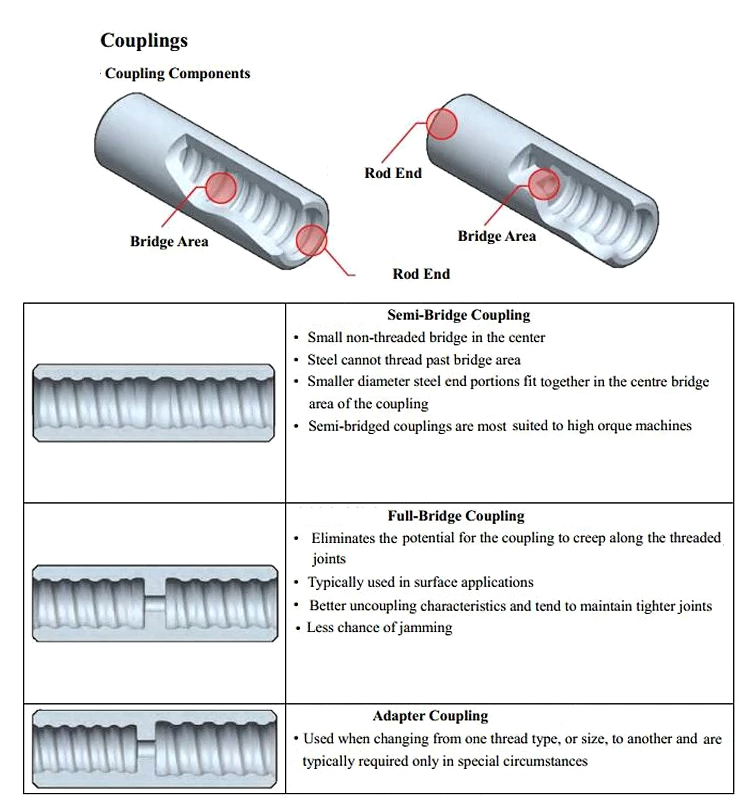

Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional dri-fter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission. Couplings are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.
Specification for Couple Sleeve
| Coupling Sleeve |
| Length |
Diameter |
Thread |
Weight |
Part Number |
| mm |
inch |
mm |
inch |
|
kg |
|
| R25 Coupling Sleeve |
| 150 |
6 |
35 |
1 3/8 |
R25 |
0.7 |
4148300429 |
| 155 |
6 1/9 |
44 |
1 3/4 |
R25 |
1 |
4148300430 |
| 160 |
6 2/7 |
38 |
1 1/2 |
R25 |
1.3 |
4148300431 |
| R28 Coupling Sleeve |
| 150 |
6 |
40 |
1 4/7 |
R28 |
0.9 |
4148300483 |
| 170 |
6 2/3 |
55 |
2 1/6 |
R28 |
2 |
4148300484 |
| R32 Coupling Sleeve |
| 150 |
6 |
44 |
1 3/4 |
R32 |
1 |
4148300646 |
| 160 |
6 2/7 |
44 |
1 3/4 |
R32 |
1.1 |
4148300647 |
| R38 Coupling Sleeve |
| 170 |
6 2/3 |
55 |
2 1/6 |
R38 |
1.9 |
4148300703 |
| 190 |
7 1/2 |
55 |
2 1/6 |
R38 |
2.1 |
4148300704 |
| T38 Coupling Sleeve |
| 190 |
7 1/2 |
55 |
2 1/6 |
T38 |
2.1 |
4148300803 |
| T45 Coupling Sleeve |
| 210 |
8 1/4 |
63 |
2 1/2 |
T45 |
3 |
4148300881 |
| 210 |
8 1/4 |
66 |
2 3/5 |
T45 |
3.3 |
4148300882 |
| T51 Coupling Sleeve |
| 225 |
8 6/7 |
71 |
2 4/5 |
T51 |
4.6 |
4148300961 |
| 225 |
8 6/7 |
76 |
3 |
T51 |
4.8 |
4148300962 |
| 235 |
9 1/4 |
72 |
2 5/6 |
T51 |
4.7 |
4148300963 |
| 235 |
9 1/4 |
77 |
3 |
T51 |
4.9 |
4148300964 |
