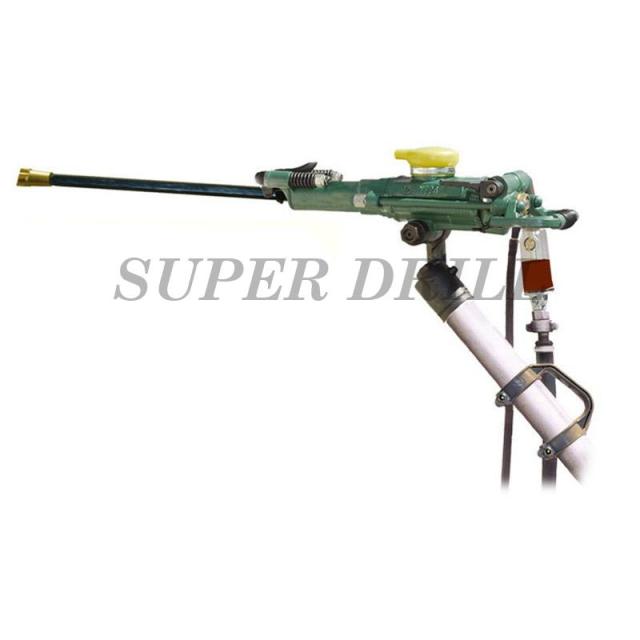

Air-leg Rock Drill

Item No.: 00130
Model Number:YT24/YT27/YT28/YT29A
Product Name:Rock Drill
Perforating depth:5M
Feature:High Drilling Efficiency
Sale: 0
Description Review
Description

The Series of  pneumatic rock drills are mainly used in mines,railway,water irrigation works and quarrying works and quarrying works to drill hole or plug holes.It is suitable for wet or dry drilling in all kinds of rocks.

Air-leg  Rock Drill YT19A Y20LY YT24 YT27 YT28 YT29A
Weight (kg) 18 18 24 24 26 26.5
Air consumption (L/s) 28 ≤25 ≤67 ≤85 ≤81 ≤65
Drill hole diameter (mm) 34-42 34-42 34-42 34-42 34-42 34-45
Max.drilling depth (mm) 3 3 5 5 5 5
Shank (mm) 22x108 22x108 22x108

22x108

22x108 22x108

YT28 Portable Hand Held Air Leg Rock Drill


YT24 Portable Hand Held Air Leg Rock Drill
